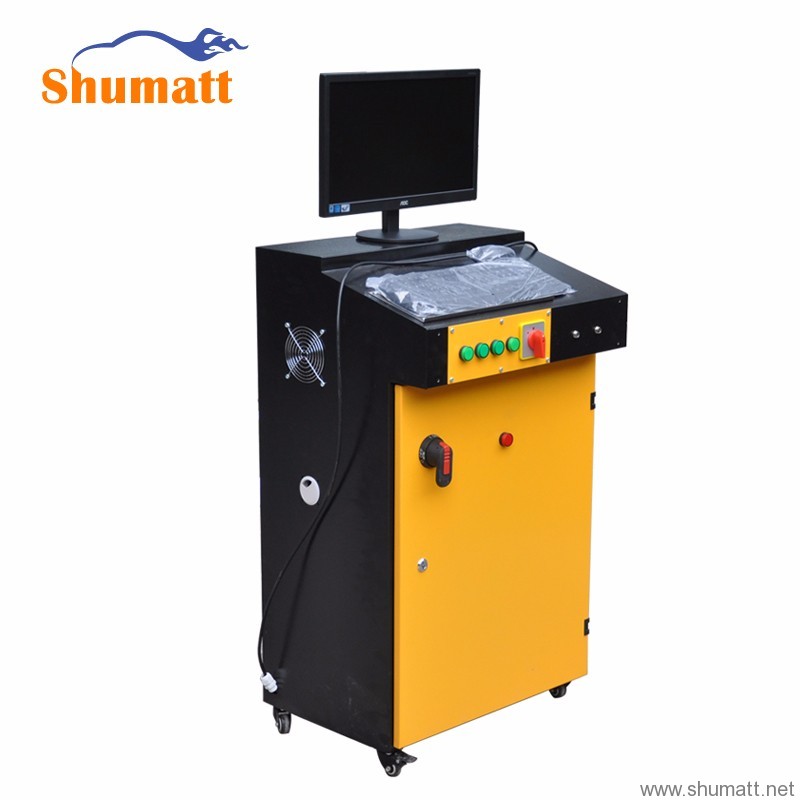

High quality Diesel common rail EUI EUP test bench 518

Product features

 1. Equipped with cam box and dozens of adapter to adapt to the fixed installation of different unit pumps and pump nozzles.

 2. Able to test hundreds of unit pumps and pump nozzles including SHUMATT.

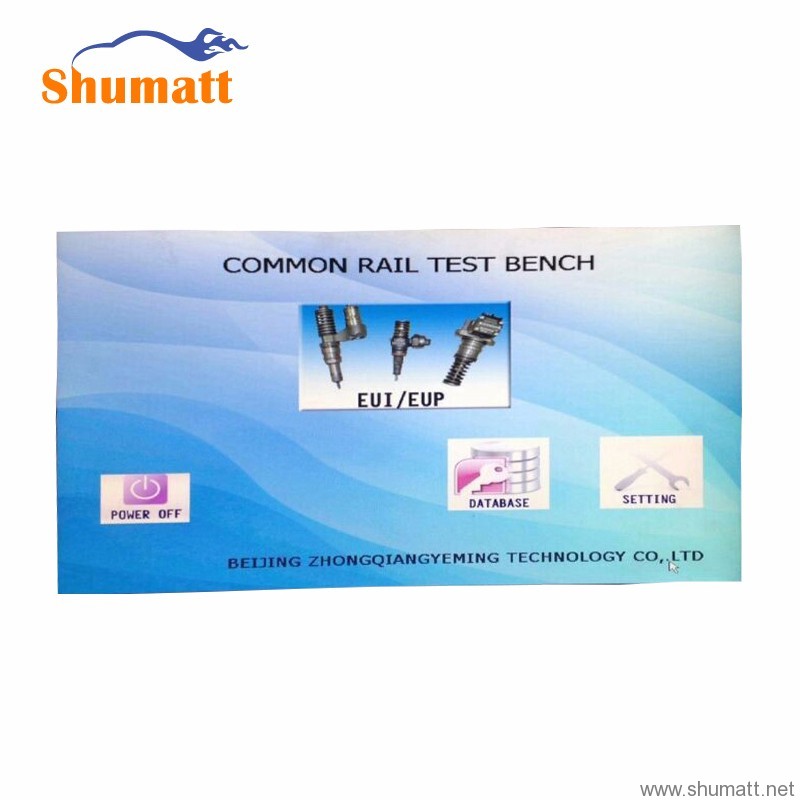

 3. Control module integrated with industrial control module, and equipped with a standard computer monitor, a mouse and aeyboard,convenient for operation.

 4. With the function to backup and upgrade main program and database.

 5. All the technologies of the product are self-developed. And special features can be tailored for customers, including shapeof test bench, program interface, ads and so on.

Experiment of unit pump

A. Equipped with cam box and dozens of adapter  to adapt to the fixed installation of different unit pumps;

B. Able to adjust the steering and speed of text bench under each operating mode with ordinary EURO 2 test bench; adjustautomatically the timing advance angle and operating angle signal driven unit pump;

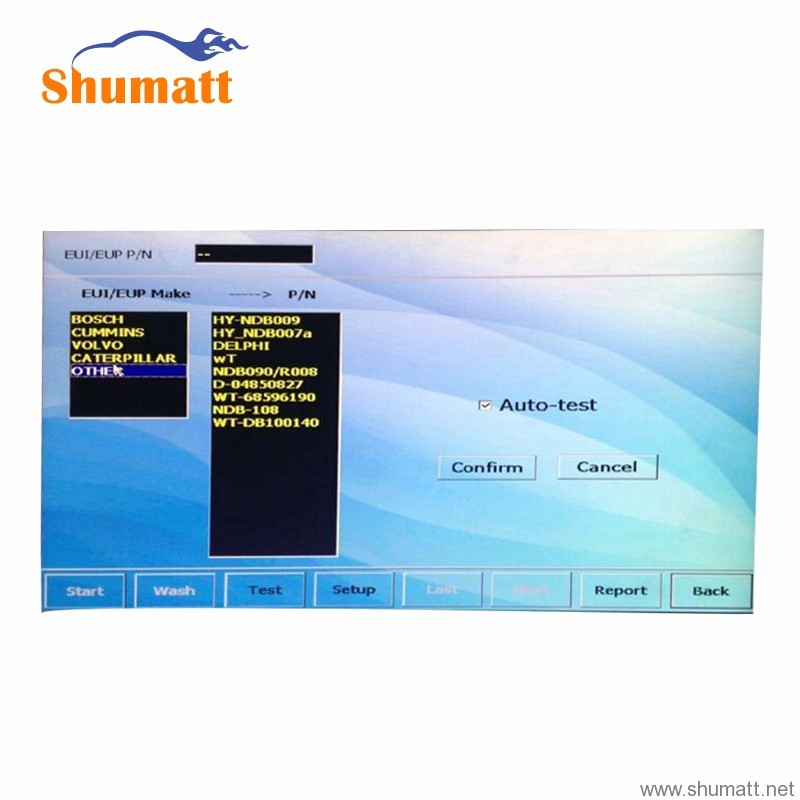

C. Data comparison of experimental standards of unit pumps; able to judge correctly the unit pump to be tested and providemaintenance guide.

D. Driven channel has the protection function for short circuit.

Experiment of injectors

1. Equipped with cam box and dozens of adapter to adapt to the fixed installation of different pump nozzles;

2. Able to adjust the steering and speed of text bench under each operating mode with ordinary EURO 2 test bench; adjust automatically the timing advance angle and operating angle signal driven pump nozzles;

3. Data comparison of experimental standard for hundreds of pump nozzles; able to judge correctly the pump nozzle to betested and provide maintenance guide.

4. Driven channel has the protection function for short circuit.

Affiliated characteristics

Device has a data backup, the system software update and data update function; Dozens of accessories, ensure for thesingle pump and pump nozzle types, convenient installation and testing.

Product features

1. Equipped with cam box and dozens of adapter to adapt to the fixed installation of different unit pumps and pump nozzles.

2. Able to test hundreds of unit pumps and pump nozzles including SHUMATT.

3. Control module integrated with industrial control module, and equipped with a standard computer monitor, a mouse and a keyboard, convenient for operation.

4. With the function to backup and upgrade main program and database.

5. All the technologies of the product are self-developed. And special features can be tailored for customers, including shape of test bench, program interface, ads and so on.
