SHUMATT Injector Washer Shim Kit Gasket B11 B12 B13 B14 B16 B22 B25 B26 B27 B31

Product Name:SHUMATT Injector Washer Shim Kit Gasket B11 B12 B13 B14 B16 B22 B25 B26 B27 B31

Parameter:

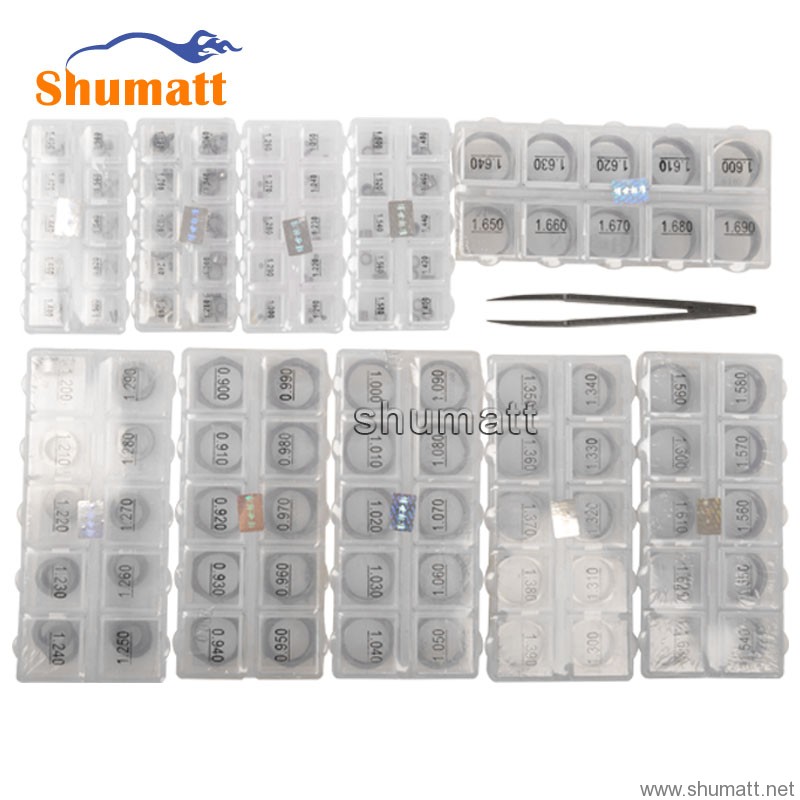

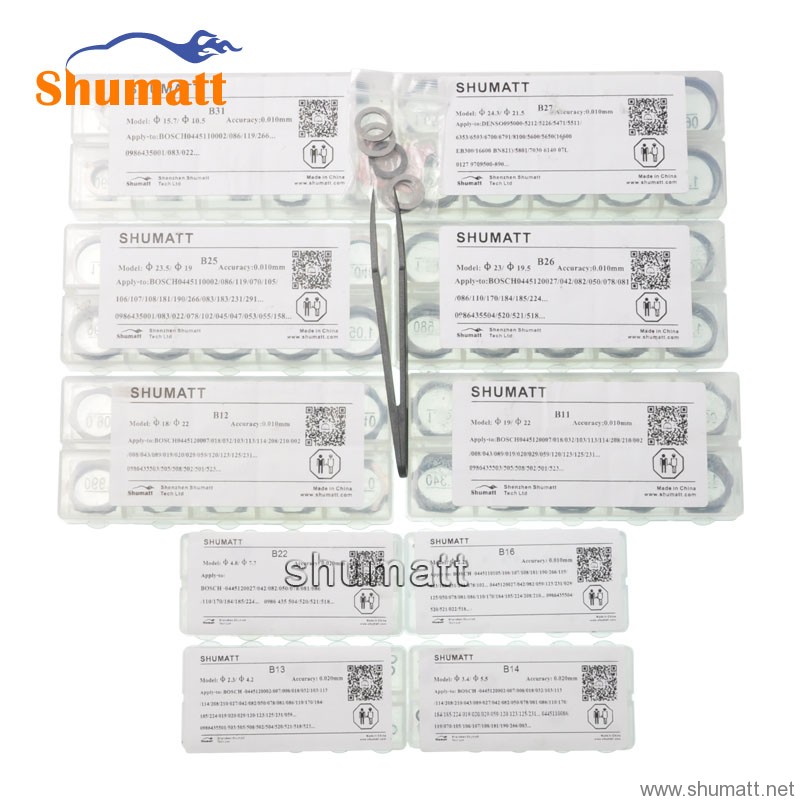

SIZE LIST:

B13:

50Pieces

Model: Ø2.3/ Ø4.2

Accuracy:0.020mm

Thickness: 1.300/1.310/1.320/1.330/1.340/1.350/1.360/1.370/1.380/1.390

Apply-to:injectors -0445120002/007/008/018/032/103/113/114/208/210/027/042/082/050/078/081/086/110/170/184/185/224/019/020/029/120/123/125/231/059…

                             0986435501/503/505/508/502/504/520/521/518/523…

B14:

50Pieces

Model:  Ø3.4/ Ø5.5

Accuracy:0.020mm

Thickness: 1.400/1.420/1.440/1.460/1.480/1.500/1.520/1.540/1.560/1.580

Apply-to:injectors -0445120002/007/008/018/032/103/113/114/208/210/043/089/027/042/082/050/078/081/086/110/170/184/185/224/019/020/029//059/120/123/125/231…

                              0445110068/119/070/105/106/107/108/181/190/266/083/…

B16:

50Pieces

Model: Ø2.28

Accuracy: 0.010mm

Thickness: 1.210/1.220/1.230/1.240/1.250/1.260/1.270/1.280/1.290/1.300

Apply-to:injectors-0445110105/106/107/108/181/190/266/119/083/183/231/291/078/1020445120027/042/082/059/123/231/029/125

                             /050/078/081/086/110/170/184/185/224/208/2100986435504/520/521/022/518/…

B22:

50Pieces

Model: Ø4.8/ Ø7.7

Accuracy:0.020mm

Thickness: 1.180/1.200/1.220/1.240/1.260/1.280/1.300/1.320/1.340/1.360

Apply-to:injectors-0445120027/042/082/050/078/081/086/110/170/184/185/224/…

                             0986 435 504/520/521/518…

B11:

50Pieces

Model: Ø19/S22

Accuracy:0.010mm

Thickness: 1.300/1.310/1.320/1.330/1.340/1.350/1.360/1.370/1.380/1.390

Apply-to:injectors -0445120007/018/032/103/113/114/208/210/002/008/043/089/019/020/029/059/120/123/125/231…

                               0986 435 503/505/508/502/501/523…

B12:

50Pieces

Model: Ø18/s22

Accuracy:0.010mm

Thickness: 0.900/0.910/0.920/0.930/0.940/0.950/0.960/0.970/0.980/0.990

Apply-to:inejctors- 044512007/018/032/103/113/114/208/210/002/008/043/089/019/020/029/059/120/123/125/231…

                             0986 435 503/505/508/502/501/523…

B25:

50Pieces

Model: Ø23.5/ Ø19

Accuracy:0.010mm

Thickness: 1.000/1.010/1.020/1.030/1.040/1.050/1.060/1.070/1.080/1.090

Apply-to:injectos- 0445110002/068/119/070/105/106/107/108/181/190/266/083/183/231/291

                             0986435001/083/022/078/102/045/047/053/055/158…

B26:

50Pieces

Model: Ø23/19.5

Accuracy:0.010mm

Thickness: 1.540/1.550/1.560/1.570/1.580/1.590/1.600/1.610/1.620/1.630

Apply-to:inejctors 0445120027/042/082/050/078/081/086/110/170/184/185/224/…

                            0986 435 504/520/521/518…

B27:

50Pieces

Model:  Ø24.3/ Ø21.5

Accuracy:0.010mm

Thickness: 1.600/1.610/1.620/1.630/1.640/1.650/1.660/1670/1.680/1.690

Apply-to:injectors- 095000-5212/5226/5471/5511/6353/6593/6700/6791/8100/5600/8650(16600 EB300/16600 BN821) /5801/7030 614007L 0127

                             9709500-890…

B31:

50Pieces

Model: Ø15.7/ Ø10.5

Accuracy:0.010mm

Thickness: 1.200/1.210/1.220/1.230/1.240/1.250/1.260/1.270/1.280/1.290

Apply-to injectors 0445 110 002/068/119/266…

                             0986 435 001/083/022…
