SHUMATT High quality Injector Washer Shim Kit Gasket B11 B12 B13 B14 B16 B22 B25 B26 B27 B31 1000pcs

Delivery Time3 working days
Size34*14*7CM
Weight1.6KG
Model Number
Warranty6 Months
BrandSHUMATT
添加参数1
添加参数2
添加参数3
添加参数4

SKU1

N20000000001000

Make an inquiry

SHUMATT injector High quality washer shim kit gasket b11 b12 b13 b14 b16 b22 b25 b26 b27 b31 1000pcs

Detailed information
FAQ
Download

product Name:SHUMATT High quality Injector Washer Shim Kit Gasket B11 B12 B13 B14 B16 B22 B25 B26 B27 B31 1000pcs

Specification:

Model name	High accuracy bosch denso injector 1000pcs adjusting shim washers
Material	Steel
Model type	10 types, B11 B12 B13 B14 B16 B22 B25 B26 B27 B31
Function	Fuel injector oil guage adjust shim / gasket
Application	Diesel bosch DENSO fuel injectors

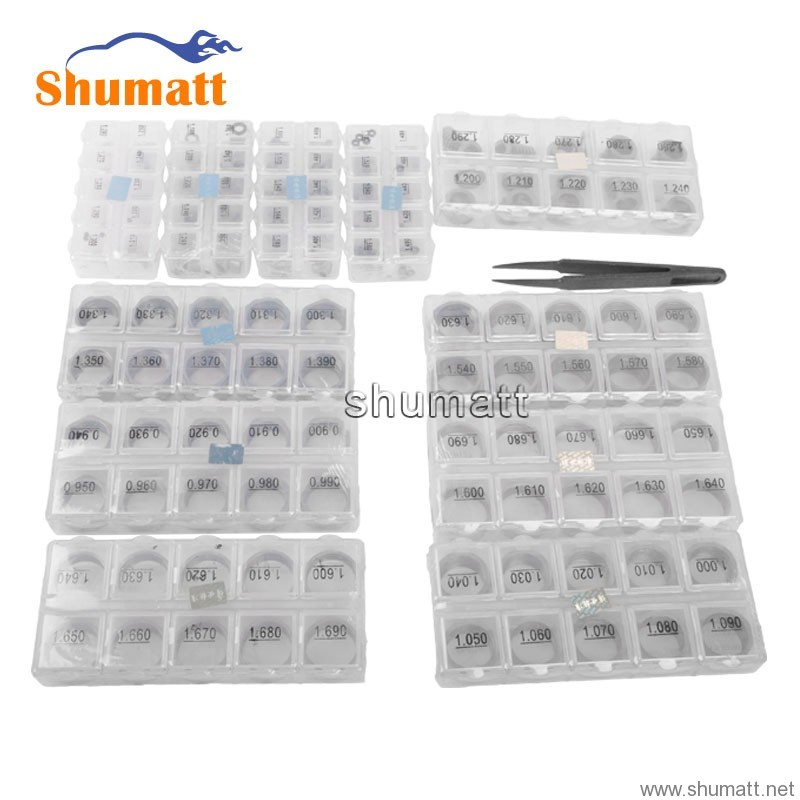

Quantity	1,000pcs(contain 11 boxes, 100pcs each type)
Package	Plastic box

Size list:

B13:
100 pieces
Model: Ø2.3/Ø4.2
Accuracy: 0.020mm

Thickness: 1.400/1.420/1.440/1.460/1.480/1.500/1.520/1.540/1.560/1.580
Apply-to: Injectors-0445120002/007/008/018/032/103/113/114/208/210/027/042/082/050/078/081/086/110/170/184/185/224/019/020/029/120/123/125/231/059…..
0986435501/503/505/508/502/504/520/521/518/523

B14:
100 pieces
Model: Ø3.4/Ø5.5
Accuracy: 0.020mm

Thickness: 1.400/1.420/1.440/1.460/1.480/1.500/1.520/1.540/1.560/1.580
Apply-to:injectors-0445120002/007/008/018/032/103/113/114/208/210/043/089/027/042/082/050/078/081/086/110/170/184/185/224/019/020/029/059/120/123/125/231….
0445110068/119/070/105/106/107/108/181/190/266/083…..

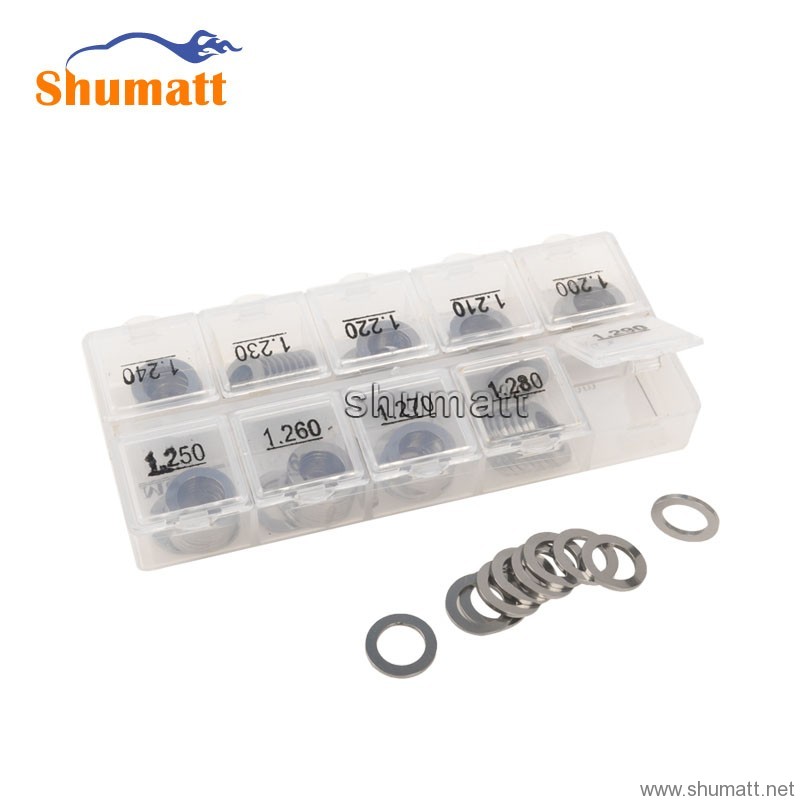

B16:
100 pieces
Model: Ø2.28
Accuracy: 0.010mm

Thickness: 1.210/1.220/1.230/1.240/1.250/1.260/1.270/1.280/1.290/1.300
Apply-to:injectors 0445110105/106/107/108/181/190/266/119/083/183/231/291/078/1020445120027/042/082/059/123/231/029/125/050

/078/081/086/110/170/184/185/224/208/2100986435504/520/521/022/518/

B22：
100 pieces
Model: Ø4.8/ Ø7.7
Accuracy: 0.020mm
Thickness: 1.180/1.200/1.220/1.240/1.260/1.280/1.300/1.320/1.340/1.360

Apply- to:injectors 0445120027/042/082/050/078/081/086/110/170/184/185/224/….
0986 435 504/520/521/518…..

B11:
100 pieces
Model: Ø19/S22
Accuracy:0.010mm

Thickness: 1.300/1.310/1.320/1.330/1.340/1.350/1.360/1.370/1.380/1.390
Apply-to:injectors 0445120007/018/032/103/113/114/208/210/002/008/043/089/019/020/029/059/120/123/125/231…
0986 435 503/505/508/502/501/523…

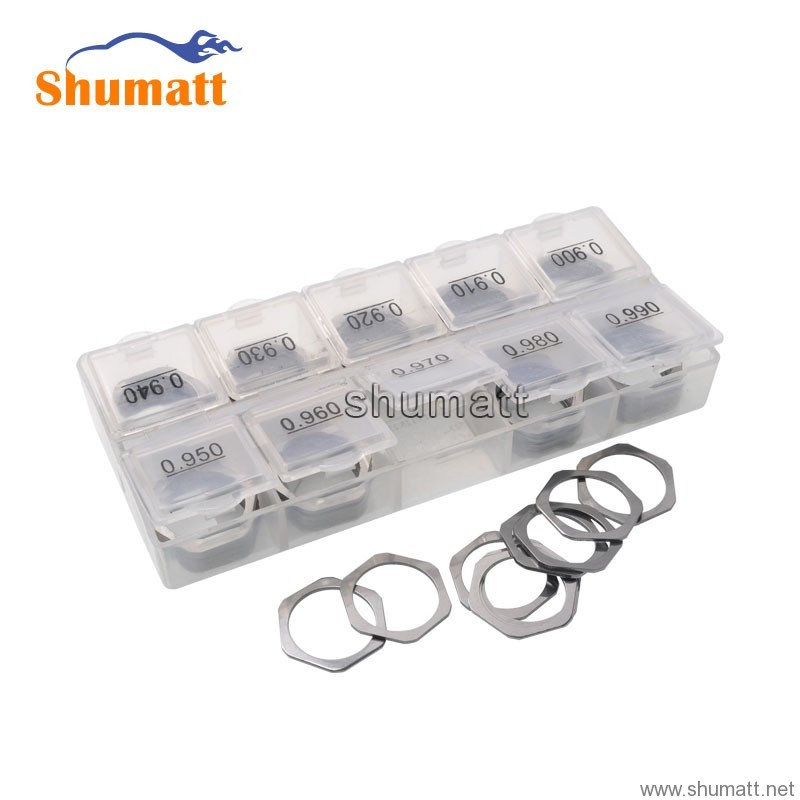

B12:
100 pieces
Model: Ø18/S22
Accuracy:0.010mm

Thickness: 0.900/0.910/0.920/0.930/0.940/0.950/0.960/0.970/0.980/0.990
Apply-to:BOSCH 0445120007/018/032/103/113/114/208/210/002/008/043/089/019/020/029/059/120/123/125/231…
0986 435 503/505/508/502/501/523…

B25:
100 pieces
Model: Ø23.5/Ø 19
Accuracy:0.010mm

Thickness: 1.000/1.010/1.020/1.030/1.040/1.050/1.060/1.070/1.080/1.090
Apply-to:injectors 0445110002/068/119/070/105/106/107/108/181/190/266/083/231/291

0986435001/083/022/078/102/045/047/053/055/158…

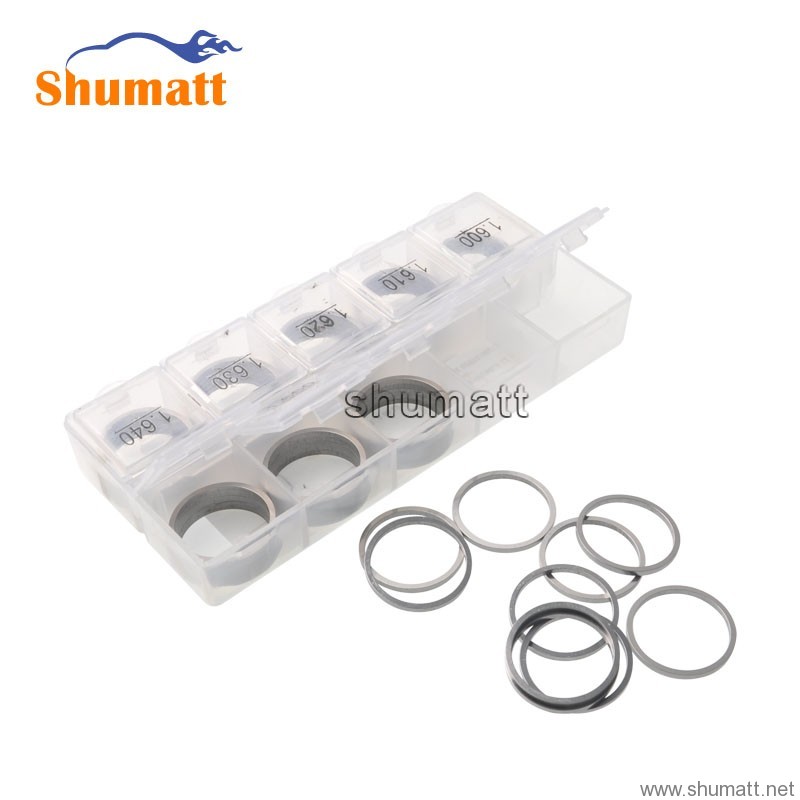

B27:
100 pieces 2 boxes
Model: Ø24.3 Ø 21.5
Accuracy:0.010mm

Thickness: 1.600/1.610/1.620/1.630/1.640/1.650/1.660/1670/1.680/1.690
Apply-to:injector 095000-5212/5226/5471/5511/6353/6593/6700/6791/8100/5600/5650

( 16600 EB300/16600 BN821) /5801/7030 614007L0127 9709500-890…

B31:
100 pieces
Model: Ø15.7/ Ø10.5
Accuracy:0.010mm

Thickness: 1.200/1.210/1.220/1.230/1.240/1.250/1.260/1.270/1.280/1.290
Apply-to:injectors 0445 110 002/068/119/266…
0986 435 001/083/022…
